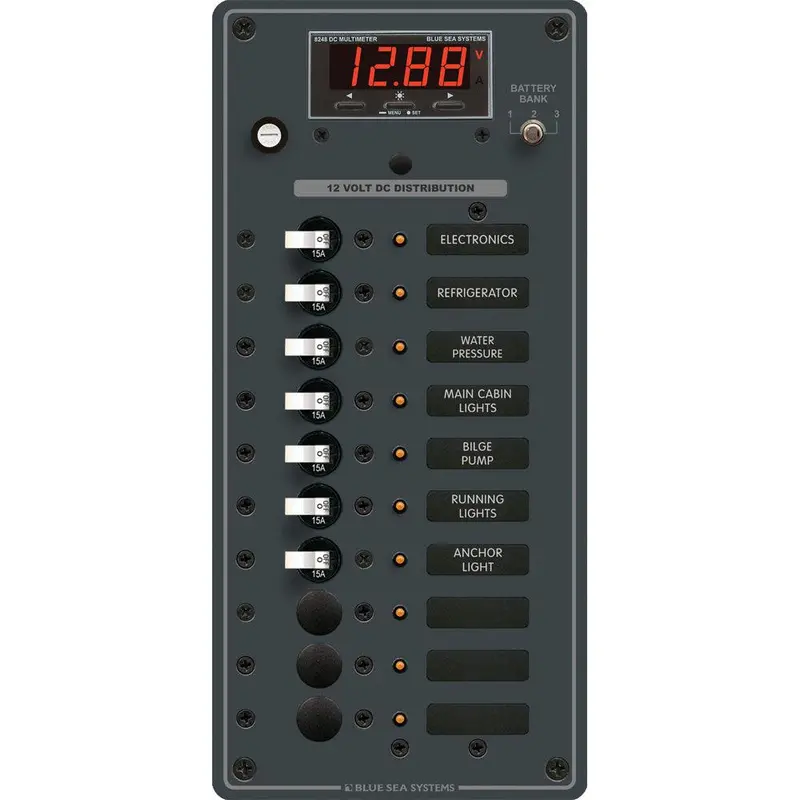

Blue Sea 8402 DC Distribution Panel – 10-Circuit with Multi-Function Meter

Description

8402 DC 10 Position with Multi-Function Meter
Features:

• Voltage 12 VDC/24 VDC
• Amperage 100A
• All positive, negative and grounding buses installed, fully pre-wired
• Panels with meters include toggle switch for mounting up to 3 battery banks
• All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters)
• All circuit label positions are backlit on standard panels – No kit required
• “ON” indicating LEDs installed in all circuit positions
• MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance
• Two-part polyurethane slate gray finish
• Heavy 1/8″ aluminum 5052 alloy
• Industry standard height and width
• Countersunk mounting holes throughout
• Detailed installation instructions and cutout template included
• Includes set of 30 common Large Format Panel Labels
• Over 500 individual labels available

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Voltage: 12/24v
• Max Breaker Quantity: 10
• AC/DC: DC
• Box Dimensions: 6″H x 10″W x 12″L WT: 4 lbs
• UPC: 632085084028

Quick Guide (pdf)
Owner’s Manual (pdf)
Brochure (pdf)
